Business is constantly on the move 24/7. The HINO500 series aims for the highest operational uptime in the field, which means that you can carry out your tasks more efficiently than ever. We want to be your reliable business partner now as well as in the future.
.png)
| ENGINE |
Model: J05E-TY Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 4-Cylinder, Overhead Camshaft, Water-cooled Displacement: 5.123 L Max. Output: 210 PS (ISO Net) | 215 PS (JIS Gross) Max. Torque: 637 Nm (ISO Net) | 642 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,700 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 115 kph |
| BRAKES |
Service Brake: Air Over Hydraulic, Dual-Circuit, Equipped with ABS Features: 2 Leading Shoes for Front and Rear Wheels with Auto Brakeshoe Adjuster Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 8.25R16-14PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Single Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| SAFETY & OTHER AMENITIES |
ABS: Equipped Auto Brakeshoe Adjuster: Equipped |
| DIMENSIONS & WEIGHTS |

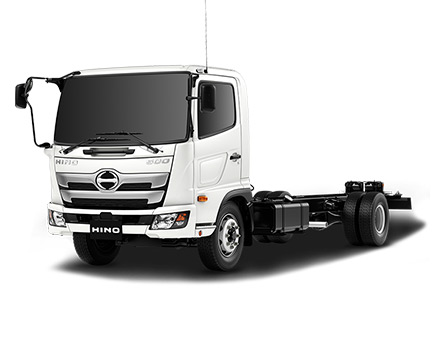

Model Code: FC9JL7A Drive System: 4 x 2 (6W) Wheelbase: 4,990 mm Length: 8,395 mm Width: 2,190 mm Height: 2,470 mm Gross Vehicle Weight (GVW): 10,400 kg Gross Combination Mass (GCM): N/A |
.png)
| ENGINE |
Model: J08E-WF Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 240 PS (ISO Net) | 245 PS (JIS Gross) Max. Torque: 716 Nm (ISO Net) | 726 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 104 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers and Stabilizer Bar Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: FG8JJ7A Model Name: 1625 Drive System: 4 x 2 (6W) Wheelbase: 4,330 mm Length: 7,785 mm Width: 2,490 mm Height: 2,750 mm Gross Vehicle Weight (GVW): 16,000 kg Gross Combination Mass (GCM): N/A |
| ENGINE |
Model: J08E-WF Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 240 PS (ISO Net) | 245 PS (JIS Gross) Max. Torque: 716 Nm (ISO Net) | 726 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 104 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers and Stabilizer Bar Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: FG8JJ7A Model Name: 1625 Drive System: 4 x 2 (6W) Wheelbase: 4,330 mm Length: 7,785 mm Width: 2,490 mm Height: 2,750 mm Gross Vehicle Weight (GVW): 16,000 kg Gross Combination Mass (GCM): N/A |
| ENGINE |
Model: J08E-WE Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 260 PS (ISO Net) | 265 PS (JIS Gross) Max. Torque: 794 Nm (ISO Net) | 804 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed A/T with Overdrive |
| PERFORMANCE | Max. Speed: 100 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11.00R20-16 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Single Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |

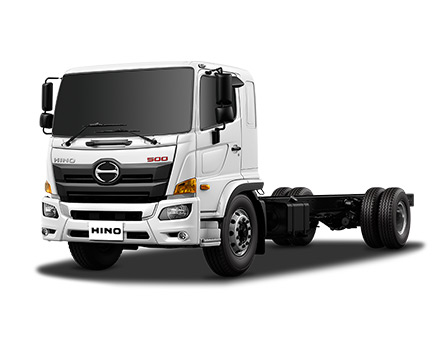

Model Code: GH8JM7A Model Name: 1927 Auto Drive System: 4 x 2 (6W) Wheelbase: 5,080 mm Length: 8,835 mm Width: 2,490 mm Height: 2,765 mm Gross Vehicle Weight (GVW): 18,200 kg Gross Combination Mass (GCM): N/A |
.png)
| ENGINE |
Model: HINO J08E-WD Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 285 PS @ 2,500 rpm Max. Torque: 834 N.m @ 1,500 rpm Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel Tank Capacity: 320 L |
| TRANSMISSION | 9-Speed M/T, Direct-drive |
| AXLE | Differential Gear Ratio: 4.625 |
| PERFORMANCE | Max. Speed: 111 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type Features: Leading and Trailing Shoes with Auto Brakeshoe Adjuster Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tire Size: 11R22.5-148/145 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| ELECTRICAL | Alternator Capacity: 24 V - 90 A |
| SAFETY & OTHER AMENITIES |
Cab Airconditioning: Equipped Power Door & Window: Equipped Anti-lock Braking System (ABS): Equipped SRS Airbag (Driver): N/A Driver Seat Suspension: Equipped |
| DIMENSIONS & WEIGHTS |

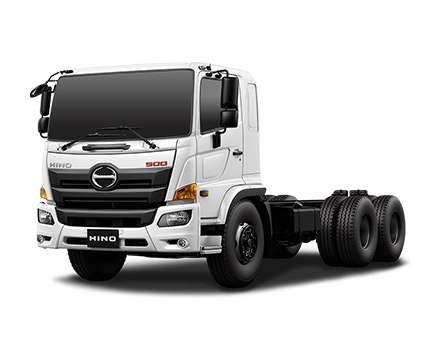

Model Code: FL8JW7A Model Name: 2629 6x2 Drive System: 6 x 4 (10W) Wheelbase: 6,130 + 1,350 mm Overall Length: 11,935 mm Overall Width: 2,490 mm Overall Height: 2,755 mm Gross Vehicle Weight (GVW): 26,000 kg |
| ENGINE |
Model: HINO J08E-WD Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 285 PS @ 2,500 rpm Max. Torque: 834 N.m @ 1,500 rpm Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel Tank Capacity: 320 L |
| TRANSMISSION | 9-Speed M/T, Direct-drive |
| AXLE | Differential Gear Ratio: 4.625 |
| PERFORMANCE | Max. Speed: 111 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type Features: Leading and Trailing Shoes with Auto Brakeshoe Adjuster Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tire Size: 11R22.5-148/145 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| ELECTRICAL | Alternator Capacity: 24 V - 90 A |
| SAFETY & OTHER AMENITIES |
Cab Airconditioning: Equipped Power Door & Window: Equipped Anti-lock Braking System (ABS): Equipped SRS Airbag (Driver): N/A Driver Seat Suspension: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: FL8JW7A Model Name: 2629 6x2 Drive System: 6 x 4 (10W) Wheelbase: 6,130 + 1,350 mm Overall Length: 11,935 mm Overall Width: 2,490 mm Overall Height: 2,755 mm Gross Vehicle Weight (GVW): 26,000 kg |
| ENGINE |
Model: HINO J08E-WD Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 285 PS @ 2,500 rpm Max. Torque: 834 N.m @ 1,500 rpm Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel Tank Capacity: 320 L |
| TRANSMISSION | 9-Speed M/T, Direct-drive |
| AXLE | Differential Gear Ratio: 4.625 |
| PERFORMANCE | Max. Speed: 111 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type Features: Leading and Trailing Shoes with Auto Brakeshoe Adjuster Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tire Size: 11R22.5-148/145 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| ELECTRICAL | Alternator Capacity: 24 V - 90 A |
| SAFETY & OTHER AMENITIES |
Cab Airconditioning: Equipped Power Door & Window: Equipped Anti-lock Braking System (ABS): Equipped SRS Airbag (Driver): N/A Driver Seat Suspension: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: FL8JW7A Model Name: 2629 6x2 Drive System: 6 x 4 (10W) Wheelbase: 6,130 + 1,350 mm Overall Length: 11,935 mm Overall Width: 2,490 mm Overall Height: 2,755 mm Gross Vehicle Weight (GVW): 26,000 kg |
.png)
| ENGINE |
Model: A09C-UP Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 8,866 L Max. Output: 350 PS (ISO Net) | 360 PS (JIS Gross) Max. Torque: 1,422 Nm (ISO Net) | 1,463 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 320 L |
| TRANSMISSION | 9-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 117 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11.00R20-16PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |

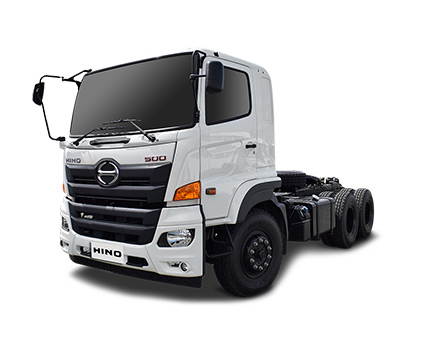

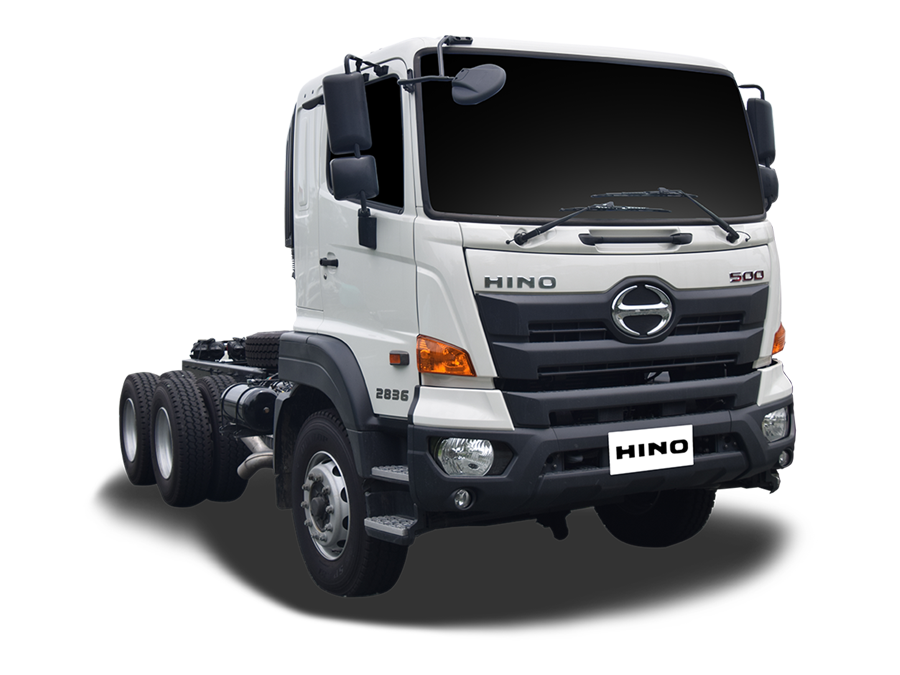

Model Code: FM1AR7A Model Name: 2836 Drive System: 6 x 4 (10W) Wheelbase: 4,530 + 1,350 mm Length: 9,485 mm Width: 2,490 mm Height: 2,905 mm Gross Vehicle Weight (GVW): 28,000 kg Gross Combination Mass (GCM): N/A |
| ENGINE |
Model: A09C-UP Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 8,866 L Max. Output: 350 PS (ISO Net) | 360 PS (JIS Gross) Max. Torque: 1,422 Nm (ISO Net) | 1,463 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 320 L |
| TRANSMISSION | 9-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 117 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11.00R20-16PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: FM1AR7A Model Name: 2836 Drive System: 6 x 4 (10W) Wheelbase: 4,530 + 1,350 mm Length: 9,485 mm Width: 2,490 mm Height: 2,905 mm Gross Vehicle Weight (GVW): 28,000 kg Gross Combination Mass (GCM): N/A |
| ENGINE |
Model: A09C-UP Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 8.866 L Max. Output: 350 PS (ISO Net) | 360 PS (JIS Gross) Max. Torque: 1,422 Nm (ISO Net) | 1,463 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 9-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 109 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, "S" Cam Type, Equipped with ABS Features: Leading and Trailing Shoes for Front and Rear Wheels Parking Brake: Air-operated Spring Brake Acting on Front and 1st Rear Axle |
| WHEELS & TIRES | Tires & Rims: 11.00R20-16PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Single Acting Shock Absorbers Rear: Semi-elliptic Leaf Springs (Reinforced Type) |
| SAFETY & OTHER AMENITIES | ABS: Equipped |
| DIMENSIONS & WEIGHTS |

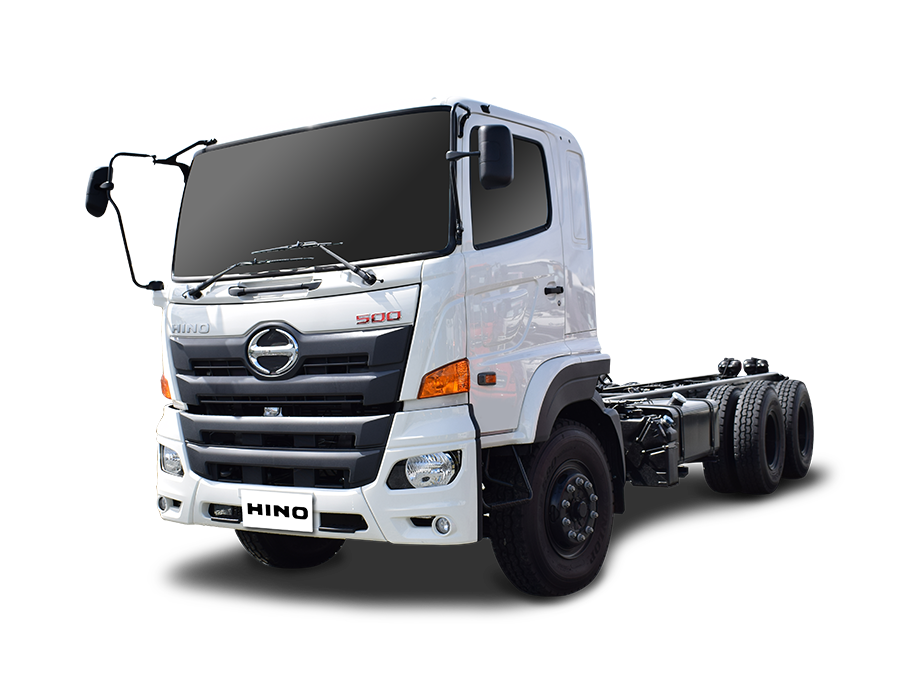

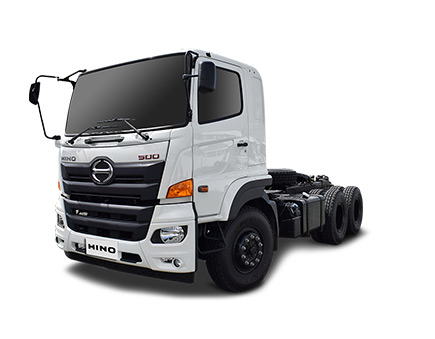

Model Code: FM1AL7D Model Name: 2836 Dump Drive System: 6 x 4 (10W) Wheelbase: 3,480 + 1,350 mm Length: 7,435 mm Width: 2,490 mm Height: 2,910 mm Gross Vehicle Weight (GVW): 28,000 kg Gross Combination Mass (GCM): N/A |
| ENGINE |
Model: HINO A09C-UP Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 8,866 L Max. Output: 360 PS @ 1,800 rpm Max. Torque: 1,463 N.m @ 1,100-1,600 rpm Emission Standard: Euro 4 Max. Engine Speed: 2,100 rpm Fuel Tank Capacity: 390 L DEF Tank Capacity: 59 L |
| TRANSMISSION | 9-Speed M/T with Overdrive |
| AXLE | Differential Gear Ratio: 4.875 |
| PERFORMANCE | Max. Speed: 118 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, Cam Type Features: Leading and Trailing Shoes with Auto Brakeshoe Adjuster Parking Brake: Air-operated Spring Brake Acting on Rear Axle |
| WHEELS & TIRES | Tire Size: 295/80R22.5 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Single Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| ELECTRICAL | Alternator Capacity: 24 V - 60 A |
| SAFETY & OTHER AMENITIES |
Cab Airconditioning: Equipped Power Door & Window: Equipped Anti-lock Braking System (ABS): Equipped SRS Airbag (Driver): N/A Driver Seat Suspension: Equipped |
| DIMENSIONS & WEIGHTS |

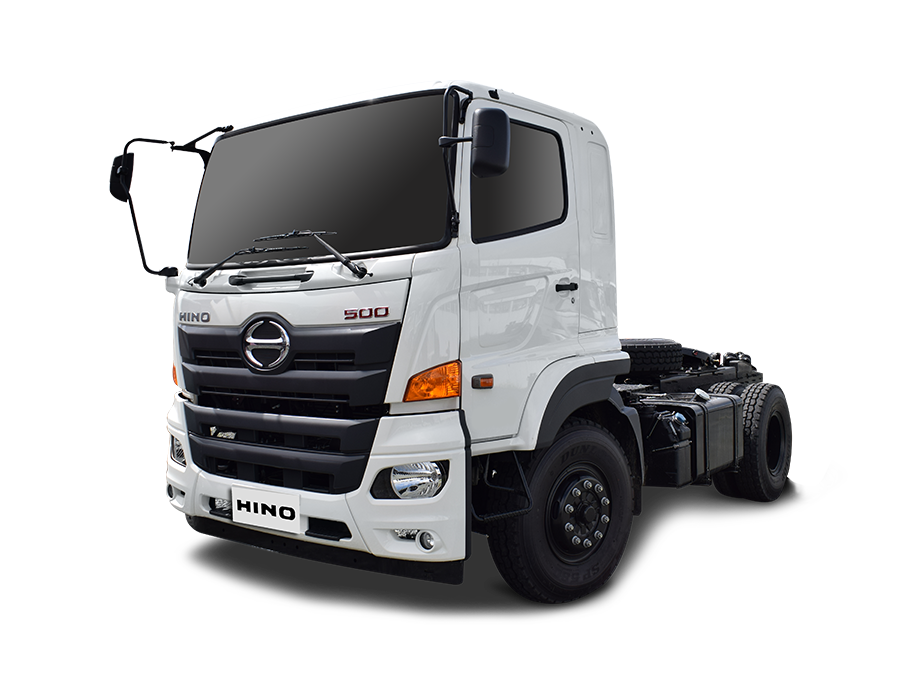

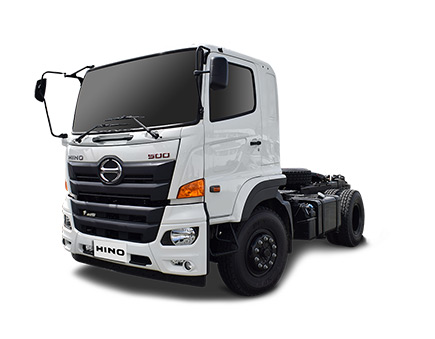

Model Code: SG1AF7B Model Name: 1735 Tractor Drive System: 4 x 2 (6W) Wheelbase: 3,630 mm Overall Length: 5,995 mm Overall Width: 2,490 mm Overall Height: 2,890 mm Gross Vehicle Weight (GVW): N/A Gross Combination Mass (GCM): 32,000 kg |
.png)
| ENGINE |
Model: HINO A09C-UP Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 8,866 L Max. Output: 360 PS @ 1,800 rpm Max. Torque: 1,463 N.m @ 1,100-1,600 rpm Emission Standard: Euro 4 Max. Engine Speed: 2,100 rpm Fuel Tank Capacity: 390 L DEF Tank Capacity: 59 L |
| TRANSMISSION | 9-Speed M/T with Overdrive |
| AXLE | Differential Gear Ratio: 4.875 |
| PERFORMANCE | Max. Speed: 118 kph |
| BRAKES |
Service Brake: Full Air, Dual-Circuit, Cam Type Features: Leading and Trailing Shoes with Auto Brakeshoe Adjuster Parking Brake: Air-operated Spring Brake Acting on Rear Axle |
| WHEELS & TIRES | Tire Size: 295/80R22.5 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Single Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| ELECTRICAL | Alternator Capacity: 24 V - 60 A |
| SAFETY & OTHER AMENITIES |
Cab Airconditioning: Equipped Power Door & Window: Equipped Anti-lock Braking System (ABS): Equipped SRS Airbag (Driver): N/A Driver Seat Suspension: Equipped |
| DIMENSIONS & WEIGHTS |
Model Code: SG1AF7B Model Name: 1735 Tractor Drive System: 4 x 2 (6W) Wheelbase: 3,630 mm Overall Length: 5,995 mm Overall Width: 2,490 mm Overall Height: 2,890 mm Gross Vehicle Weight (GVW): N/A Gross Combination Mass (GCM): 32,000 kg |
Helping to Drive Your Business.

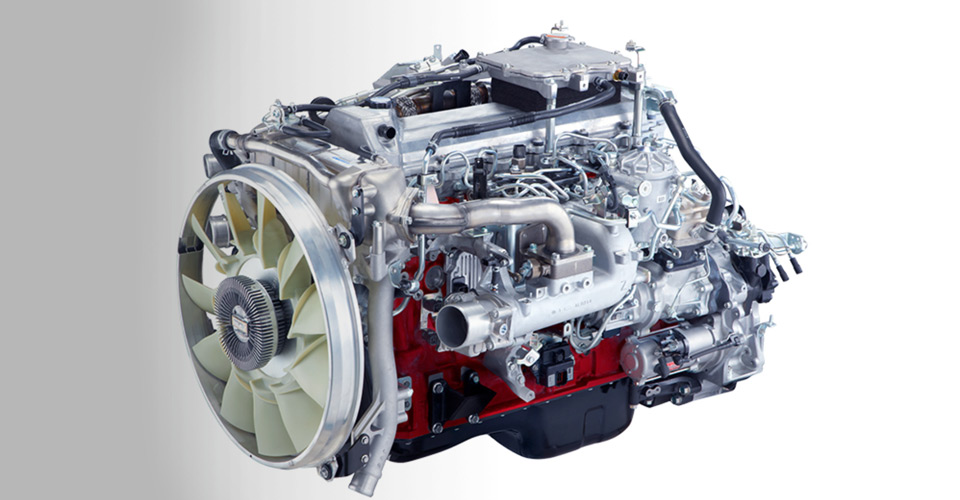

Featuring a new turbo engine elaborately engineered for outstanding environmental performance coupled with the ability to generate high torque and horsepower. A transportation solution that offers powerful performance, excelling in hot and cold climates, at high altitudes, low altitudes and most everything in between to thrive in almost any environment imaginable.

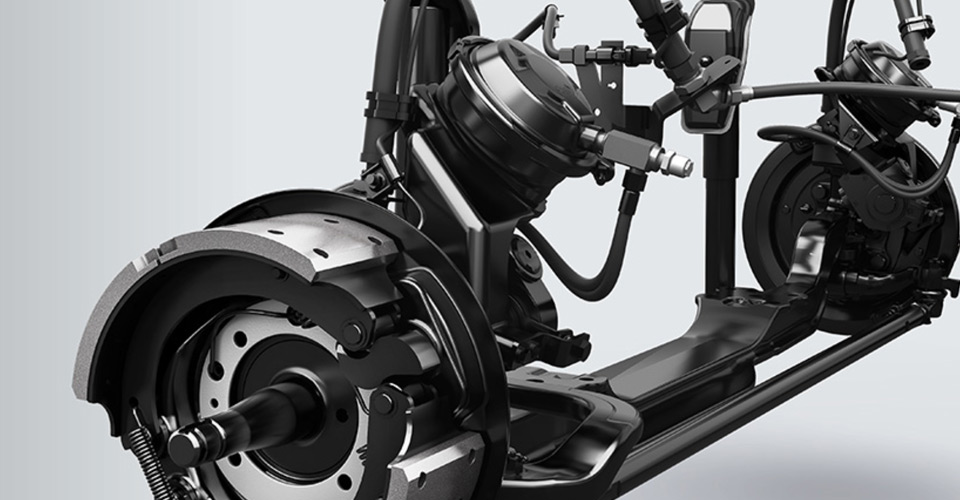

State of the art brake technology that includes retarder brakes and brake chambers coupled with ABS to help prevent serious accidents come standard to enhance safety and bring peace of mind.

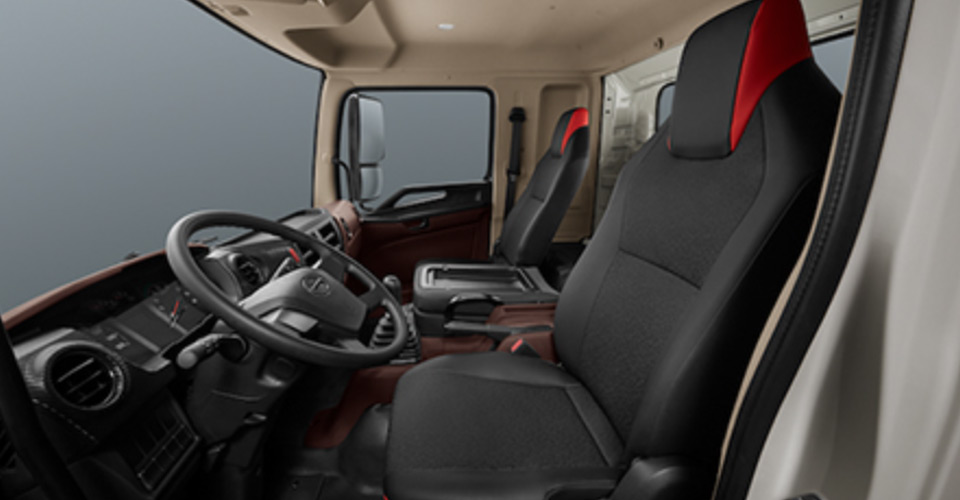

A design crafted with the driver in mind including a simple, easy-to-see dashboard layout, cruise control* that eases the burden of time on the road, highly convenient storage and seat position features that make it easy to get in and out of the cab.

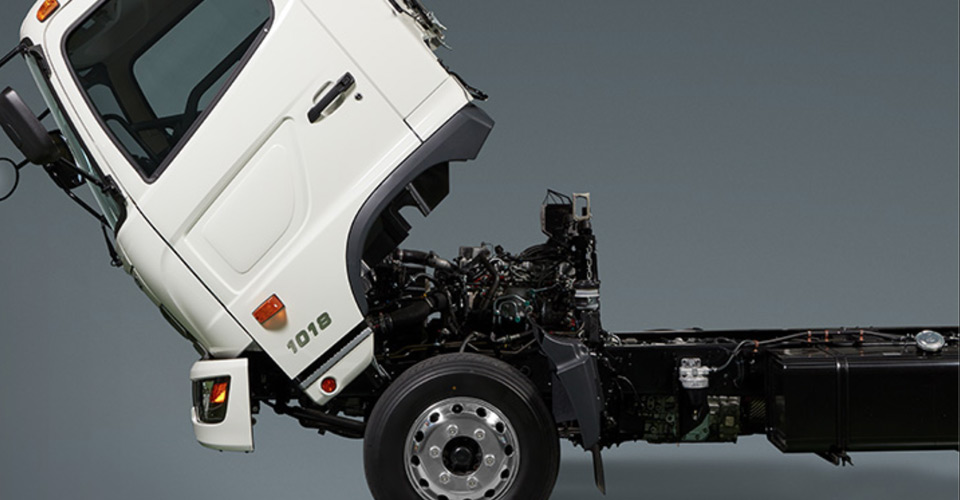

Maintenance and daily inspections are easy thanks to practical design innovation that allows generous and easy access under the hood and enables the cab to tilt forward. The truck design helps to find problems early to contribute to uninterrupted daily operation and reduce maintenance costs.
