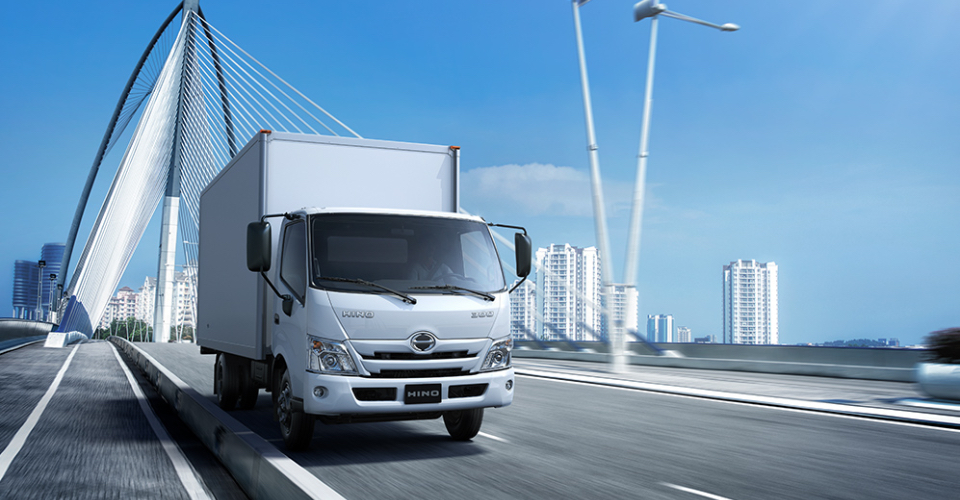

Built for durability and usability, the all-new Hino 300 Series is designed to support business owners looking to invest in light-duty trucks that can handle heavy-duty operations. The introduction of the new units comes at an opportune time with the e-commerce industry thriving and suppliers and retailers requiring reliable trucks to transport essential goods.
.png)
| ENGINE |
Model: N04C-WW Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 136 PS (ISO Net) | 141.5 PS (JIS Gross) Max. Torque: 390 Nm (ISO Net) | 400 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,350 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 150 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 235/65R16C (Tubeless) |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Rubber Bushing Type) with Shock Absorbers Rear: Semi-elliptic Leaf Springs (Rubber Bushing Type) with Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU309LN Cab Type: Narrow Cab Wheelbase: 2,530 mm Length: 5,075 mm Width: 1,715 mm Height: 2,115 mm Gross Vehicle Weight (GVW): 4,490 kg |
| ENGINE |
Model: N04C-WW Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 136 PS (ISO Net) | 141.5 PS (JIS Gross) Max. Torque: 390 Nm (ISO Net) | 400 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,350 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 150 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 235/65R16C (Tubeless) |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Rubber Bushing Type) with Shock Absorbers Rear: Semi-elliptic Leaf Springs (Rubber Bushing Type) with Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU349LN Drive System: 4 x 2 (4W) Cab Type: Narrow Cab Wheelbase: 3,405 mm Length: 6,430 mm Width: 1,715 mm Height: 2,115 mm Gross Vehicle Weight (GVW): 4,490 kg |
| ENGINE |
Model: N04C-WW Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 136 PS (ISO Net) | 141.5 PS (JIS Gross) Max. Torque: 390 Nm (ISO Net) | 400 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,350 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 133 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.50R16-14PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Rubber Bushing Type) with Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Rubber Bushing Type) with Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU349LH Drive System: 4 x 2 (6W) Cab Type: Narrow Cab Wheelbase: 3,380 mm Length: 6,320 mm Width: 1,965 mm Height: 2,155 mm Gross Vehicle Weight (GVW): 7,500 kg |
.png)

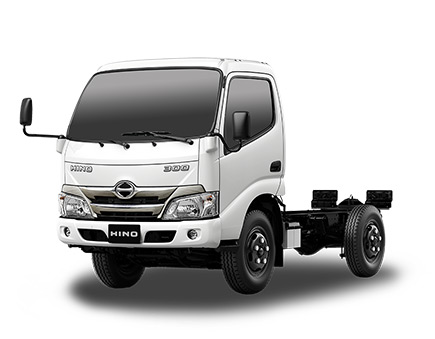

| ENGINE |
Model: N04C-WJ Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 136 PS (ISO Net) | 139 PS (JIS Gross) Max. Torque: 390 Nm (ISO Net) | 394 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 80 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: Front: Disc Brake, Rear: Drum Brake with Auto Brakeshoe Adjuster, Equipped with ABS Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.00R16-12PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU600LM Drive System: 4 x 2 (4W) Cab Type: Narrow Cab Wheelbase: 2,525 mm Length: 4,680 mm Width: 1,695 mm Height: 2,130 mm Gross Vehicle Weight (GVW): 4,490 kg Power Door & Window: Equipped Power Door Lock: Equipped |
| ENGINE |
Model: N04C-WJ Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 136 PS (ISO Net) | 139 PS (JIS Gross) Max. Torque: 390 Nm (ISO Net) | 394 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 80 L |
| TRANSMISSION | 6-Speed A/T with Overdrive |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: Front: Disc Brake, Rear: Drum Brake with Auto Brakeshoe Adjuster, Equipped with ABS Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.00R16-12PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU600LA Drive System: 4 x 2 (4W) Cab Type: Narrow Cab Wheelbase: 2,525 mm Length: 4,680 mm Width: 1,695 mm Height: 2,130 mm Gross Vehicle Weight (GVW): 4,490 kg |
.png)

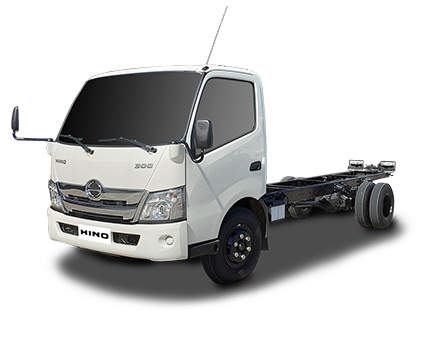

| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 123 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.00R16-10PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU710LN Drive System: 4 x 2 (6W) Cab Type: Wide Cab Wheelbase: 3,430 mm Length: 6,120 mm Width: 1,995 mm Height: 2,205 mm Gross Vehicle Weight (GVW): 4,490 kg |
| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 123 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.00R16-10PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU710LN Drive System: 4 x 2 (6W) Cab Type: Wide Cab Wheelbase: 3,430 mm Length: 6,120 mm Width: 1,995 mm Height: 2,205 mm Gross Vehicle Weight (GVW): 4,490 kg |
.png)

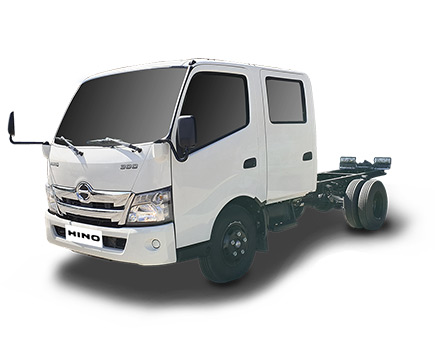

| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 132 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.50R16-12 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU720LD Drive System: 4 x 2 (6W) Cab Type: Double Cab Wheelbase: 3,870 mm Length: 6,740 mm Width: 1,995 mm Height: 2,255 mm Gross Vehicle Weight (GVW): 6,500 kg |
.png)

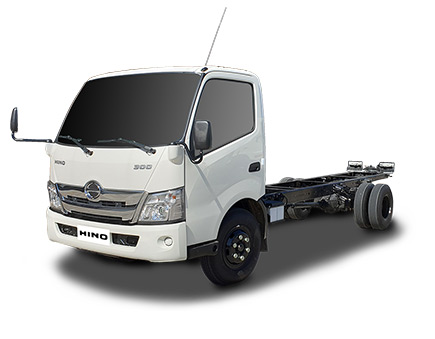

| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels, Equipped with ABS Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.50R16-14 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU730LN Drive System: 4 x 2 (6W) Cab Type: Wide Cab Wheelbase: 4,200 mm Length: 7,250 mm Width: 2,055 mm Height: 2,260 mm Gross Vehicle Weight (GVW): 8,500 kg |
| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES |
Service Brake: Hydraulic System, Dual-Circuit, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels, Equipped with ABS Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tires & Rims: 7.50R16-14 |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers |
| DIMENSIONS & WEIGHTS |
Model Code: XZU730LN Drive System: 4 x 2 (6W) Cab Type: Wide Cab Wheelbase: 4,200 mm Length: 7,250 mm Width: 2,055 mm Height: 2,260 mm Gross Vehicle Weight (GVW): 8,500 kg |
The all-new Hino 300 Series light-duty trucks come with a Euro 4-compliant, fuel-efficient engine that can help businesses save costs especially for long drives. The 4-cylinder diesel engine runs on an electric control common rail fuel injection system designed to deliver high-power and high-efficiency performance.
To ensure driver convenience, the cab interior has been upgraded with a bigger meter display for easier reading, improved power doors and windows, and ergonomically designed seats for more room and comfort. SRS Airbags and Anti-lock Brake System (ABS) have also been installed in some Hino 300 Series variants for increased driver and passenger safety.

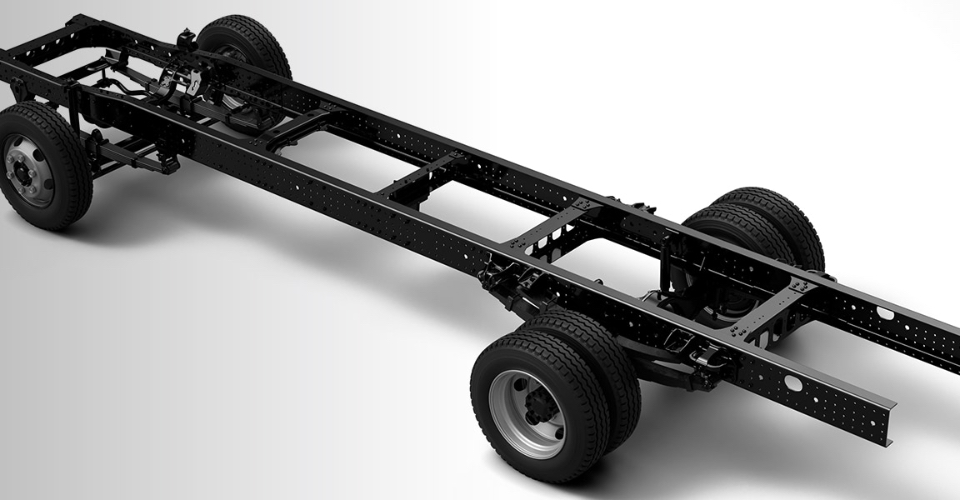

Business success depends on two things: a solid base and the power to grow. The HINO 300 Series gives your fleet construction that delivers long-lasting dependability and an engine designed for high-power, high-efficiency performance. A hard-working light-duty truck that is easy on your bottom line, the HINO 300 Series is built for new business opportunities.
Business success depends on two things: a solid base and the power to grow. The HINO 300 Series Performance is maximized at every turn, making the HINO300 Series a trusted partner for business

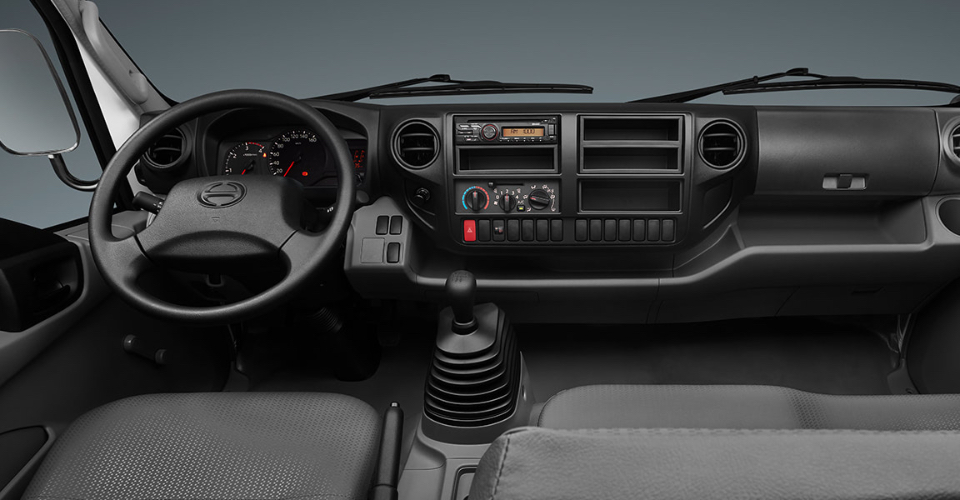

Intuitively designed, roomy and comfortable, the cab space is designed to give drivers what they need to perform at their best.

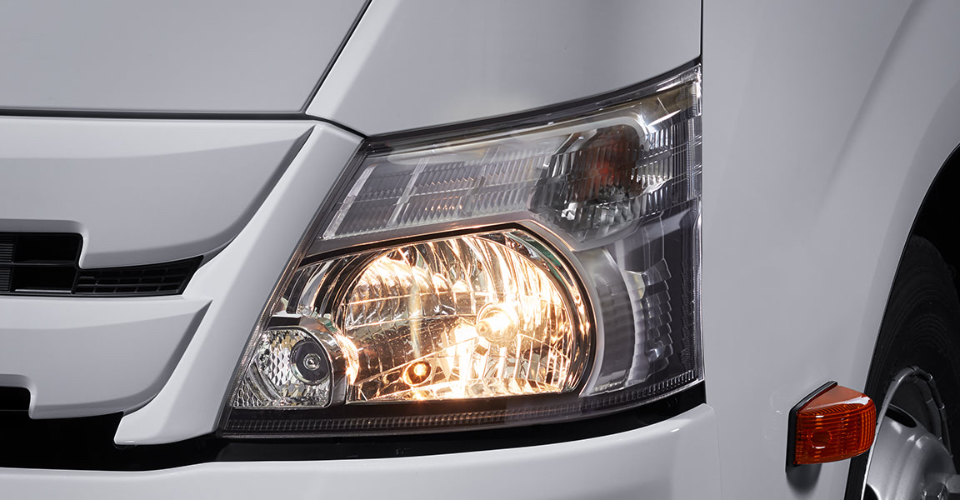

Passive safety features offer drivers a high level of confidence.LED HEADLAMP & FOG LAMP | AERODYNAMIC CAB | ANTI-LOCK BRAKING SYSTEM | SRS AIR BAG
