Hino buses are equipped with features designed with passengers in mind, so that everyone, from children to the elderly, can ride comfortably. Built for safety to minimize injury in the unlikely event of an emergency, aiming toward “Zero Traffic Accident Casualties” for everyone on board -- both passengers and drivers.
.png)

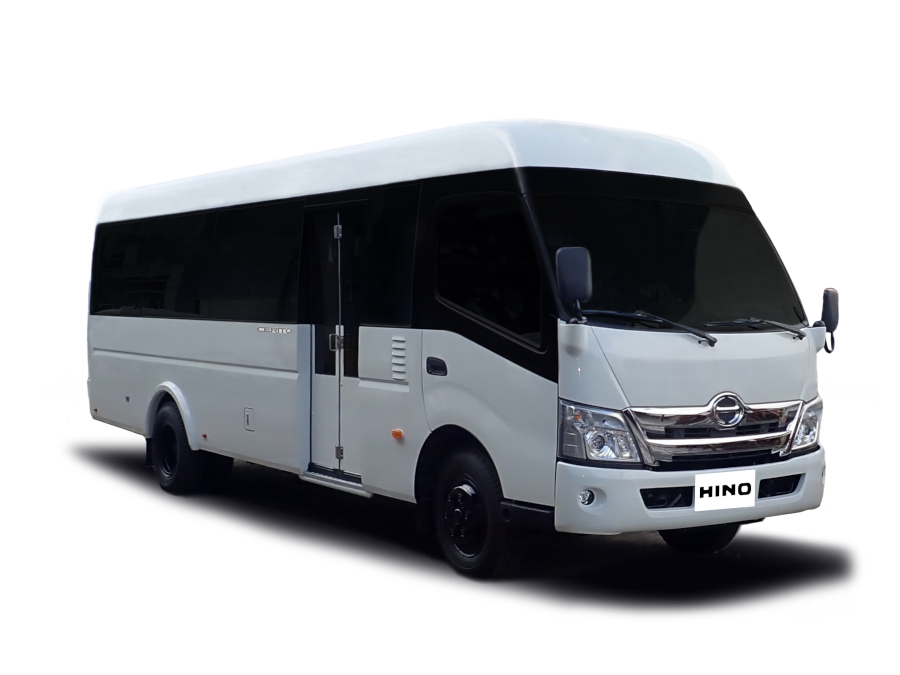

| MODEL INFORMATION |

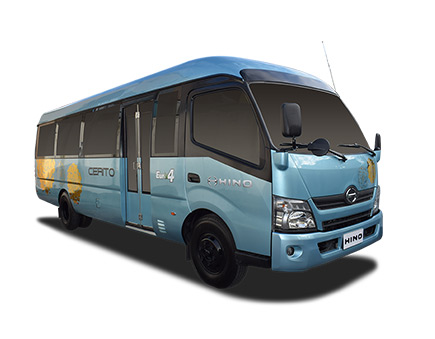

Range/Series: HINO BUS Model Name: Cerito 916 Model Code: XZU730LN Category: Mini Bus Type: Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 8,500 kg |
| ENGINE |
Model: N04C-WK Type: Diesel, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed, Overdrive, Synchromesh 1st - 6th |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES | Type & Features: Hydraulic System, Dual-Circuit, Vacuum Assist, 2 Leading Shoes for Front and Rear Wheels, Equipped with ABS |
| WHEELS & TIRES | Tires & Rims: 7.00-R16-12PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Double Acting Shock Absorbers and Stabilizer Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers and Stabilizer |
| DIMENSIONS |
Wheelbase: 4,400 mm Length: 7,700 mm Width: 2,008 mm Height: 2,700 mm |
| SEATING CAPACITY | 23 + 6 Jump Seats + 1 Driver |
| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: 916 Model Code: XZU730LN Category: Mini Bus Type: Regular Non-A/C / Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 8,500 kg |
| ENGINE |
Model: N04C-WK Type: Diesel, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed, Overdrive, Synchromesh 1st - 6th |
| PERFORMANCE | Max. Speed: 125 kph |
| BRAKES | Type & Features: Hydraulic System, Dual-Circuit, Vacuum Assist, 2 Leading Shoes for Front and Rear Wheels, Equipped with ABS |
| WHEELS & TIRES | Tires & Rims: 7.50-R16-14PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Double Acting Shock Absorbers and Stabilizer Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Double Acting Shock Absorbers and Stabilizer |
| DIMENSIONS |
Wheelbase: 4,200 mm Length: 8,160 mm Width: 2,100 mm Height: 3,040 mm (Regular Non-A/C) | 3,290 mm (Regular A/C) |
| SEATING CAPACITY | 32 - 38 + 1 Driver |
.png)

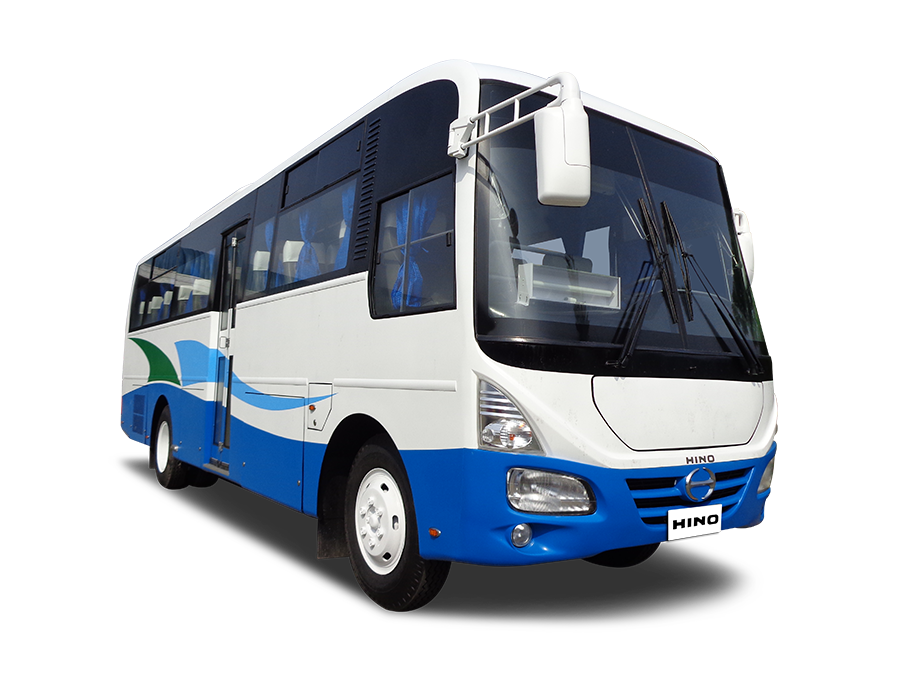

| MODEL INFORMATION |

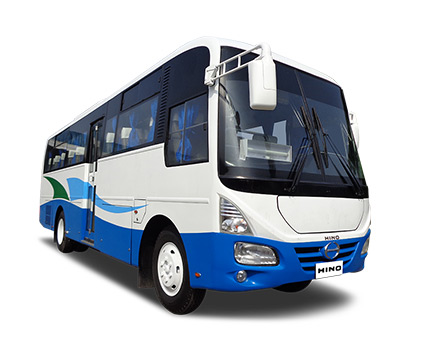

Range/Series: HINO BUS Model Name: 1021 Model Code: FC9JL7A Category: Mid Bus Type: Regular Non-A/C / Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 10,400 kg |
| ENGINE |
Model: J05E-TY Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Camshaft, Water-cooled Displacement: 5.123 L Max. Output: 210 PS (ISO Net) | 215 PS (JIS Gross) Max. Torque: 637 Nm (ISO Net) | 642 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,700 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed, Overdrive, Synchromesh 2nd - 6th |
| PERFORMANCE | Max. Speed: 115 kph |
| BRAKES | Type & Features: Air Over Hydraulic, Dual-Circuit, 2 Leading Shoes for Front and Rear Wheels with Auto Brakeshoe Adjuster, Equipped with ABS |
| WHEELS & TIRES | Tires & Rims: 8.25-R20-14PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Single Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| DIMENSIONS |
Wheelbase: 4,990 mm Length: 9,500 mm Width: 2,250 mm Height: 3,320 mm (Regular Non-A/C) | 3,600 mm (Regular A/C) |
| SEATING CAPACITY | 41 - 45 |
.png)

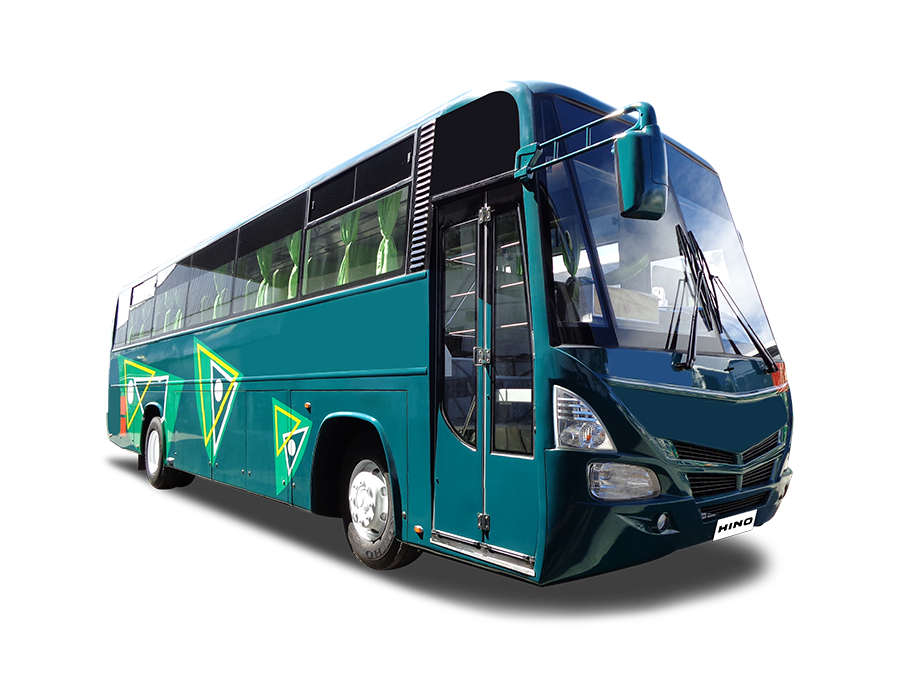

| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: 1625 Model Code: FG8JP7A Category: Mid Bus Type: Regular Non-A/C / Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 16,000 kg |
| ENGINE |
Model: J08E-WF Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 240 PS (ISO Net) | 245 PS (JIS Gross) Max. Torque: 716 Nm (ISO Net) | 726 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed, Overdrive, Synchromesh 2nd - 6th |
| PERFORMANCE | Max. Speed: 104 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, "S" Cam Type, Leading and Trailing Shoes for Front and Rear Wheels, Equipped with ABS |
| WHEELS & TIRES | Tires & Rims: 11.00-R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| DIMENSIONS |
Wheelbase: 5,530 mm Length: 10,500 mm Width: 2,480 mm Height: 3,700 mm (Regular Non-A/C) | 3,900 mm (Regular A/C) |
| SEATING CAPACITY | 53 - 55 (Regular Non-A/C) | 55 (Regular A/C) |
| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: 1625 Long Model Code: FG8JP7A with FOH Extension Category: Mid Bus Type: Regular Non-A/C / Regular A/C / Deluxe A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 16,000 kg |
| ENGINE |
Model: J08E-WF Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 240 PS (ISO Net) | 245 PS (JIS Gross) Max. Torque: 716 Nm (ISO Net) | 726 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed, Overdrive, Synchromesh 2nd - 6th |
| PERFORMANCE | Max. Speed: 104 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, "S" Cam Type, Leading and Trailing Shoes for Front and Rear Wheels, Equipped with ABS |
| WHEELS & TIRES | Tires & Rims: 11.00-R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Tapered Leaf Springs with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs |
| DIMENSIONS |
Wheelbase: 5,530 mm Length: 11,300 mm Width: 2,480 mm Height: 3,700 mm (Regular Non-A/C) | 3,900 mm (Regular A/C) | 3,900 mm (Deluxe A/C) |
| SEATING CAPACITY | 59 - 61 (Regular Non-A/C) | 61 (Regular A/C) | 45 (Deluxe A/C) |

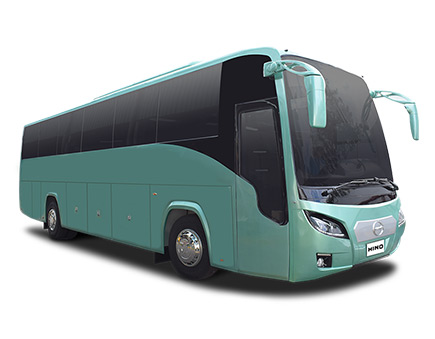

| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: RK 1426 Model Code: RK8JMUA Category: Big Bus Type: Regular Non-A/C / Regular A/C / Deluxe A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 14,000 kg |
| ENGINE |
Model: J08E-UB Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 250 PS (ISO Net) | 260 PS (JIS Gross) Max. Torque: 739 Nm (ISO Net) | 745 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,650 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 250 L |
| TRANSMISSION | 6 Forward and 1 Reverse Speed, Direct-drive, Synchronous 2nd - 6th |
| PERFORMANCE | Max. Speed: 114 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, "S" Cam Type, Leading and Trailing Shoes for Front and Rear Wheels |
| WHEELS & TIRES | Tires & Rims: 11R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Silencer, Double Acting Shock Absorbers and Stabilizer Rear: Semi-elliptic Leaf Springs with Silencer, Double Acting Shock Absorbers and Stabilizer |
| DIMENSIONS |
Wheelbase: 5,200 mm Length: 11,000 mm Width: 2,480 mm Height: 3,550 mm (Regular Non-A/C) | 3,800 mm (Regular A/C) | 3,550 mm (Deluxe A/C) |
| SEATING CAPACITY | 45 (Regular Non-A/C) | 55 (Regular A/C) | 45 - 62 (Deluxe A/C) |
| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: RK 1426 Long Model Code: RK8JSUA Category: Big Bus Type: Regular Non-A/C / Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 14,000 kg |
| ENGINE |
Model: J08E-UB Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 250 PS (ISO Net) | 260 PS (JIS Gross) Max. Torque: 739 Nm (ISO Net) | 745 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,650 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 250 L |
| TRANSMISSION | 6 Forward and 1 Reverse Speed, Direct-drive, Synchronous 2nd - 6th |
| PERFORMANCE | Max. Speed: 114 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, "S" Cam Type, Leading and Trailing Shoes for Front and Rear Wheels |
| WHEELS & TIRES | Tires & Rims: 11R22.5-16PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Silencer, Double Acting Shock Absorbers and Stabilizer Rear: Semi-elliptic Leaf Springs with Silencer, Double Acting Shock Absorbers and Stabilizer |
| DIMENSIONS |
Wheelbase: 5,200 mm Length: 11,000 mm Width: 2,480 mm Height: 3,550 mm (Regular Non-A/C) | 3,800 mm (Regular A/C) |
| SEATING CAPACITY | 57 - 62 (Regular Non-A/C) | 46 - 50 (Regular A/C) |
| MODEL INFORMATION |

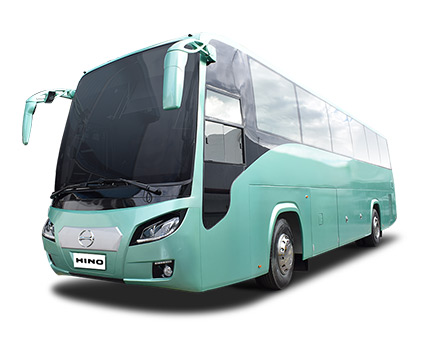

Range/Series: HINO BUS Model Name: RN 1626 Model Code: RN8JSUA Category: Big Bus Type: Deluxe Non-A/C / Regular Non-A/C / Regular A/C / Deluxe A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 16,000 kg |
| ENGINE |
Model: J08E-UB Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7.684 L Max. Output: 250 PS (ISO Net) | 260 PS (JIS Gross) Max. Torque: 739 Nm (ISO Net) | 745 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,650 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 250 L |
| TRANSMISSION | 6 Forward and 1 Reverse Speed, Direct-drive, Synchronous 2nd - 6th |
| PERFORMANCE | Max. Speed: 118 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, "S" Cam Type, Leading and Trailing Shoes for Front and Rear Wheels |
| WHEELS & TIRES | Tires & Rims: 11R22.5-16PR |
| SUSPENSION |
Front: Air Suspension with Double Acting Shock Absorbers and Stabilizer Rear: Air Suspension with Double Acting Shock Absorbers and Stabilizer |
| DIMENSIONS |
Wheelbase: 6,000 mm Length: 12,000 mm Width: 2,480 mm Height: 3,550 mm (Deluxe Non-A/C) | 3,550 mm (Regular Non-A/C) | 3,800 mm (Regular A/C) | 3,800 mm (Deluxe A/C) |
| SEATING CAPACITY | 60 - 62 (Deluxe Non-A/C) | 62 (Regular Non-A/C) | 50 (Regular A/C) | 50 (Deluxe A/C) |
.png)

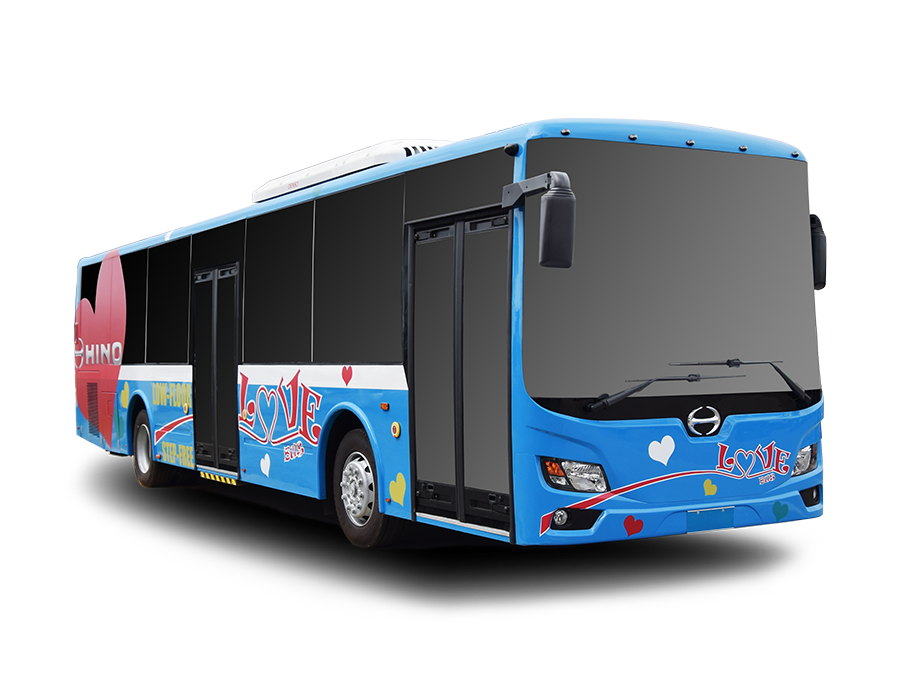

| MODEL INFORMATION |
Range/Series: HINO BUS Model Name: HS 1829 Model Code: HS8JRUL Category: Low-Floor Bus Type: Regular A/C Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 18,000 kg |
| ENGINE |
Model: J08E-WD Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 6-Cylinder, Overhead Camshaft, Water-cooled Displacement: 7,684 L Max. Output: 280 PS (ISO Net) | 285 PS (JIS Gross) Max. Torque: 824 Nm (ISO Net) | 834 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 2,600 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 200 L |
| TRANSMISSION | 6-Speed A/T with Overdrive and Integrated Retarder |
| PERFORMANCE | Max. Speed: 120 kph |
| BRAKES | Type & Features: Full Air, Dual-Circuit, Disc Brake for Front and Rear Wheels, Equipped with ABS & Automatic Brake Pad Gap Adjuster |
| WHEELS & TIRES | Tires & Rims: 275/70R22.5-152/148 |
| SUSPENSION |
Front: Air Springs with Double Acting Shock Absorbers and Suspension Rear: Air Springs with Double Acting Shock Absorbers Features: Wide Air Suspension + Height Adjustment |
| DIMENSIONS |
Wheelbase: 5,875 mm Length: 12,200 mm Width: 2,500 mm Height: 3,270 mm |
| PASSENGER CAPACITY | 36 (Seating) + 26 (Standing) |
| SPECIAL FEATURES |
Passenger Entry: PWD Ramp (Retractable), Kneeling Function (Passenger Side Kneeling) Interior: Wide Legroom and Comfortable Seats for Seated Passengers, Spacious Aisle and Ample Hand Grabs for Standing Passengers, Folding Ramp for Boarding of PWD on Wheelchair and Space for Wheelchair and Priority Passengers, Anti-bacterial / Anti-viral, Scratch-resistant and Easy to Clean Interior Panels, Warm-colored Interior Lighting, Energy-saving LED Lighting, Wide Screen 32" LED TV, Powerful Air-conditioning, Wide Visibility One-piece Windshield, Wide Opening, Anti-pinch Double Swing-in Service Doors |
| MODEL INFORMATION |
Range/Series: HINO PUV Model Name: PUV CLASS I Model Code: 415J Seating Layout: 13 Passenger Drive System: 4 x 2 (4W) Gross Vehicle Weight (GVW): 3,800 kg |
| ENGINE |
Model: Toyota 1GD-FTV Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 4-Cylinder, Double Overhead Valve, Water-cooled Displacement: 2,755 L Max. Output: 144 PS @ 3,400 rpm Max. Torque: 300 N.m @ 1,200 - 3,200 rpm Emission Standard: Euro 4 Max. Engine Speed: 4,400 rpm Fuel Tank Capacity: 60 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 130 kph |
| BRAKES |
Service Brake: Dual-Circuit, Hydraulic, Vacuum Assist Features: Front: Disc Brake, Rear: Drum Brake with Auto Brakeshoe Adjuster Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tire Size: 195/75R15 (Tubeless) |
| SUSPENSION |
Front: Double Wishbone, Independent Torsion Bar Springs with Double Acting Shock Absorbers and Stabilizer Rear: Semi-Elliptic Main and Auxiliary Leaf Springs and Rubber Rebound Bumpers with Double Acting Shock Absorbers |
| BODY SPECIFICATIONS |
Type: Single Desk Skeleton Type Body Construction: Combination of G.A., RHS and Bended Sheet Metal Front and Rear: G.A. Sheet 0.8 mm (Rear only) Flooring: MSP 2.00 mm Structure w/ Corrugated G.A. 1.0 mm Floor Panels Side and Ceiling Panel: High Pressure Laminate Body Treatment: Multi-Stage Poly-Urethane Paint, Rust Proofing and Under-Coating Seats: Perimeter Seating with Foam Caution and Backrest |
| SAFETY & OTHER AMENITIES |
Airconditioning: Optional Fire Extinguisher: Equipped Rear View Camera: Equipped Electronic Sign Board (LED Display): Equipped CCTV: Equipped Dash Camera: Equipped |
| DIMENSIONS & WEIGHTS |
Wheelbase: 2,545 mm Overall Length: 4,500 mm Overall Width: 1,712 mm Overall Height: 2,500 mm Front Overhang: 962 mm Rear Overhang: 993 mm Gross Vehicle Weight (GVW): 3,800 kg |
| PASSENGER CAPACITY | 13 Passengers |

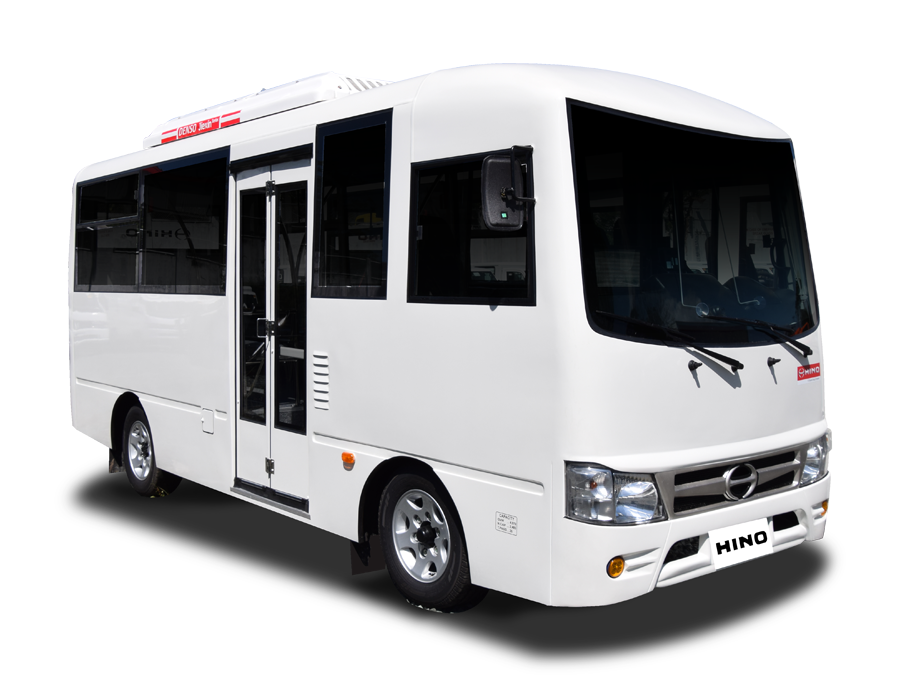

| MODEL INFORMATION |
Range/Series: HINO PUV Model Name: PUV CLASS II Model Code: XZU349LJ (4-Wheeler) Drive System: 4 x 2 (4W) Gross Vehicle Weight (GVW): 4,970 kg |
| ENGINE |
Model: Hino N04C-WW Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 136 PS @ 2,500 rpm Max. Torque: 390 N.m @ 1,400 - 2,400 rpm Emission Standard: Euro 4 Max. Engine Speed: 3,350 rpm Fuel Tank Capacity: 80 L |
| TRANSMISSION | 5-Speed MT with Overdrive |
| PERFORMANCE | Max. Speed: 150 kph |
| BRAKES |
Service Brake: Dual-Circuit, Hydraulic, Vacuum Assist Features: Two Leading Shoes for Front and Rear Wheels (Drum Brake) Parking Brake: Not specified |
| WHEELS & TIRES | Tire Size: 235/65R16C (Tubeless) |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Shock Absorbers and Stabilizer Rear: Semi-elliptic Leaf Springs with Shock Absorbers |
| BODY SPECIFICATIONS |
Type: Single Desk Skeleton Type Body Construction: Combination of Rectangular Tubes & Bended Sheet Metal, All-Steel, Non-Rivetted Construction Front and Rear: Fiber-Reinforced Plastic Flooring: Marine Plywood with Vinyl Studded Gray Matting Side and Ceiling Panel: High Pressure Laminate Body Treatment: Multi-Stage Poly-Urethane Paint, Rust Proofing and Under-Coating Seats: Perimeter Seating with Foam Caution and Backrest |
| SAFETY & OTHER AMENITIES |
Airconditioning: Equipped Fire Extinguisher: Equipped Rear View Camera: Equipped Electronic Sign Board (LED Display): Equipped CCTV: Equipped Dash Camera: Equipped |
| DIMENSIONS & WEIGHTS |
Wheelbase: 3,405 mm Overall Length: 6,215 mm Overall Width: 1,780 mm Overall Height: 2,860 mm Front Overhang: 1,220 mm Rear Overhang: 1,590 mm Gross Vehicle Weight (GVW): 4,970 kg |
| PASSENGER CAPACITY | 26 (8 Standing) |
| MODEL INFORMATION |

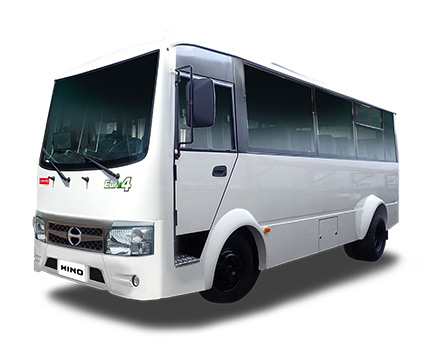

Range/Series: HINO PUV Model Name: PUV CLASS 2-S Model Code: XZU710LJ (6-Wheeler) Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 4,995 kg |
| ENGINE |
Model: N04C-WK Type: Diesel, Turbo-charged & Intercooled, 4-Cycle, Vertical, Inline, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4,009 L Max. Output: 150 PS (ISO Net) | 156 PS (JIS Gross) Max. Torque: 420 Nm (ISO Net) | 430 Nm (JIS Gross) Emission Standard: Euro 4 Max. Engine Speed: 3,100 rpm Fuel System: Electronic Control Common Rail Type Fuel Tank Capacity: 100 L |
| TRANSMISSION | 6-Speed MT with Overdrive |
| PERFORMANCE |
Max. Speed: 123 kph Gradeability: 60.0% |
| BRAKES |
Service Brake: Dual-Circuit, Hydraulic, Vacuum Assist Features: 2 Leading Shoes for Front and Rear Wheels Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tire Size: 7.00-R16-10PR |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers Rear: Semi-elliptic Main and Auxiliary Leaf Springs (Reinforced Type) with Double Acting Shock Absorbers |
| BODY SPECIFICATIONS |
Type: Single Desk Skeleton Type Body Construction: Combination of RHS, SHS, & Bended Sheet Metal Front and Rear: Fiber-Reinforced Plastic Flooring: Marine Plywood with Vinyl Studded Gray Matting Side and Ceiling Panel: Galvannealed Steel Sheet Body Treatment: Multi-Stage Poly-Urethane Paint, Rust Proofing and Under-Coating Seats: Perimeter Seating with Foam Cushion and Backrest |
| SAFETY & OTHER AMENITIES | Airconditioning: Equipped |
| DIMENSIONS & WEIGHTS |
Wheelbase: Approx. 3,430 mm Overall Length: Approx. 6,500 mm Overall Width: Approx. 2,100 mm Overall Height: Approx. 2,890 mm Front Overhang: Approx. 1,280 mm Rear Overhang: Approx. 1,770 mm Gross Vehicle Weight (GVW): 4,995 kg |
| PASSENGER CAPACITY | 23 + 1 Driver |

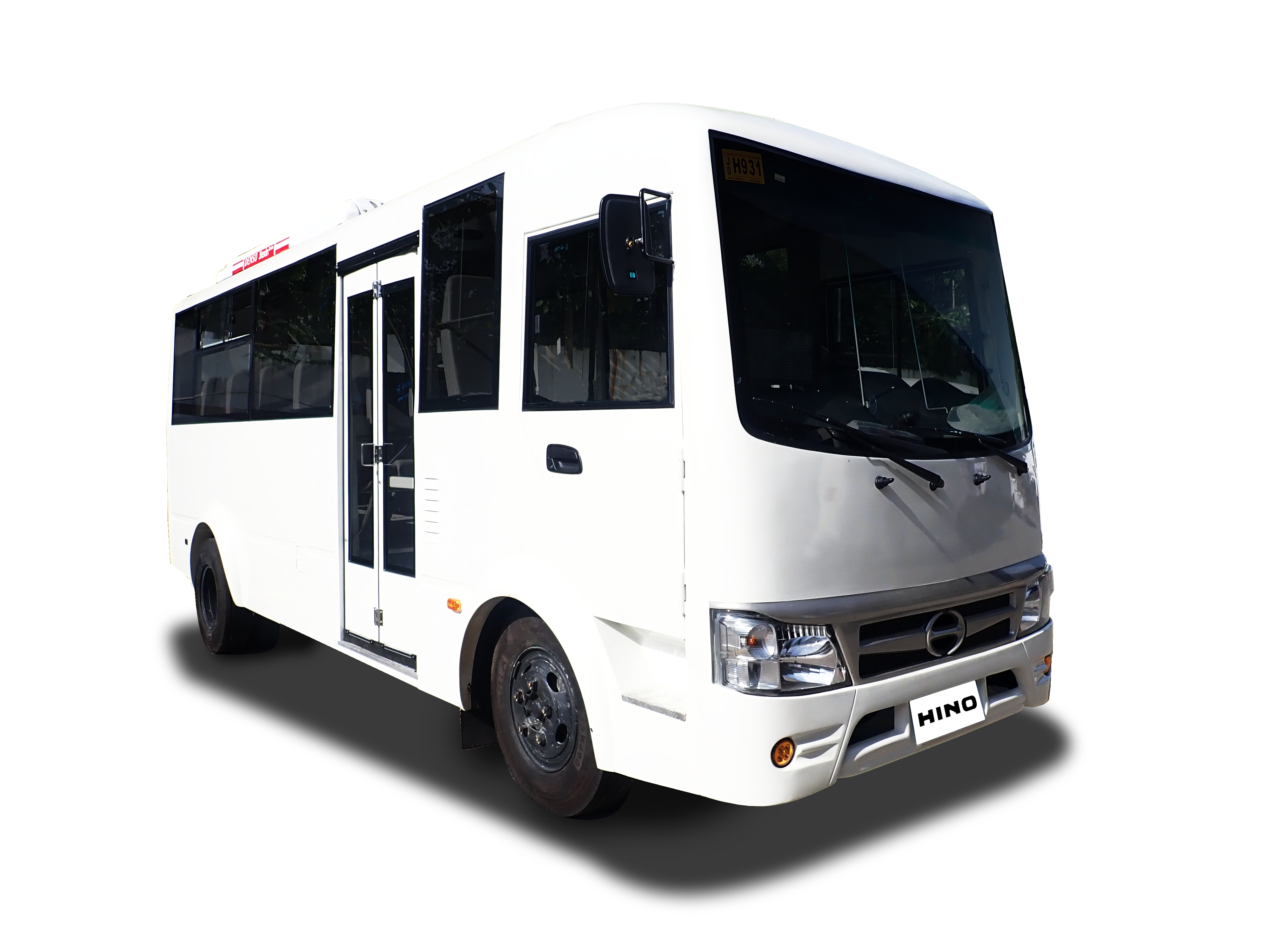

| MODEL INFORMATION |

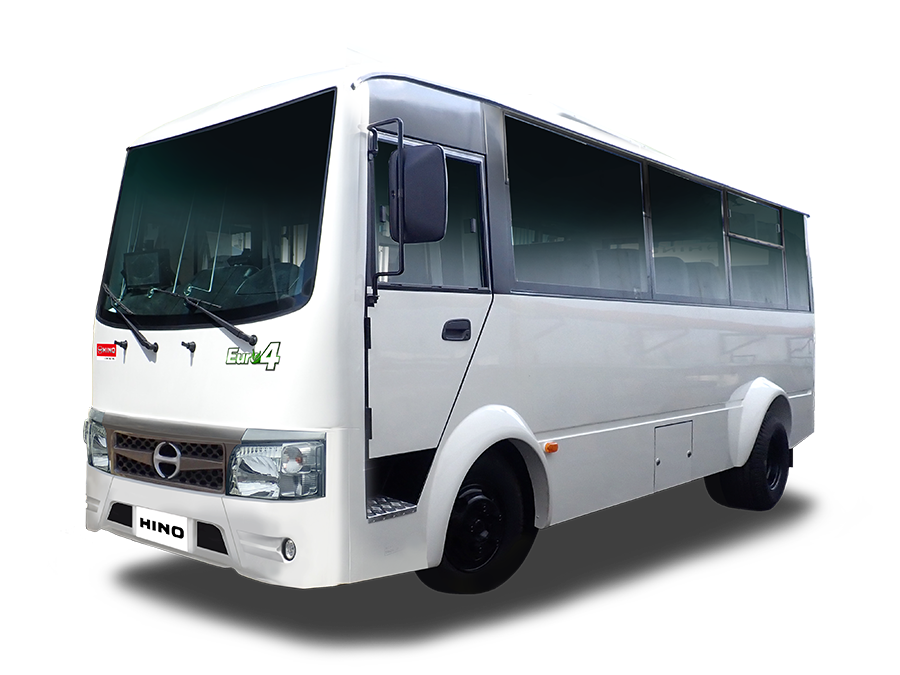

Range/Series: HINO PUV Model Name: PUV CLASS III / PUV CLASS III (Wide) Model Code: XZU359LJ (6-Wheeler) Drive System: 4 x 2 (6W) Gross Vehicle Weight (GVW): 4,995 kg |
| ENGINE |
Model: Hino N04C-WW Type: Diesel, Turbocharged & Intercooled, 4-Cycle, Vertical, In-line, 4-Cylinder, Overhead Valve, Water-cooled Displacement: 4.009 L Max. Output: 136 PS @ 2,500 rpm Max. Torque: 390 N.m @ 1,400 - 2,400 rpm Emission Standard: Euro 4 Max. Engine Speed: 3,350 rpm Fuel Tank Capacity: 80 L |
| TRANSMISSION | 5-Speed M/T with Overdrive |
| PERFORMANCE | Max. Speed: 133 kph |
| BRAKES |
Service Brake: Dual-Circuit, Hydraulic, Vacuum Assist Features: Two Leading Shoes for Front and Rear Wheels (Drum Brake) Parking Brake: Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| WHEELS & TIRES | Tire Size: 7.50R16-14PR (Tube Type) |
| SUSPENSION |
Front: Semi-elliptic Leaf Springs with Shock Absorbers and Stabilizer Rear: Semi-elliptic Main and Auxiliary Leaf Springs with Shock Absorbers |
| BODY SPECIFICATIONS |
Type: Single Desk Skeleton Type Body Construction: Combination of Rectangular Tubes & Bended Sheet Metal, All-Steel, Non-Rivetted Construction Front and Rear: Fiber-Reinforced Plastic Flooring: Marine Plywood with Vinyl Studded Gray Matting Side and Ceiling Panel: High Pressure Laminate Body Treatment: Multi-Stage Poly-Urethane Paint, Rust Proofing and Under-Coating Seats: Forward Facing Fixed Reclined Seats with Foam Cushion and Backrest |
| SAFETY & OTHER AMENITIES |
Airconditioning: Equipped (Class III) / Optional (Class III Wide) Fire Extinguisher: Equipped Rear View Camera: Equipped Electronic Sign Board (LED Display): Equipped CCTV: Equipped Dash Camera: Equipped |
| DIMENSIONS & WEIGHTS |
Wheelbase: 4,000 mm Overall Length: 6,950 mm Overall Width: 1,955 mm (Class III) | 2,100 mm (Class III Wide) Overall Height: 2,935 mm (Class III) | 2,760 mm (Class III Wide) Front Overhang: 1,220 mm Rear Overhang: 1,730 mm Gross Vehicle Weight (GVW): 4,995 kg |
| PASSENGER CAPACITY | 23 Passengers |
